Tie-rod hydraulic cylinders
E mounting ISO MS2
Categories
Cylinders
- CD series: non-magnetic tie-rod hydraulic cylinder from Ø25 to Ø100;
- MD series: magnetic tie-rod hydraulic cylinder from Ø25 to Ø100;
- DK series: large size tie-rod hydraulic cylinder from Ø125 to Ø200;
- Rod end: STANDARD male thread, SF female thread, ST floating joint end.

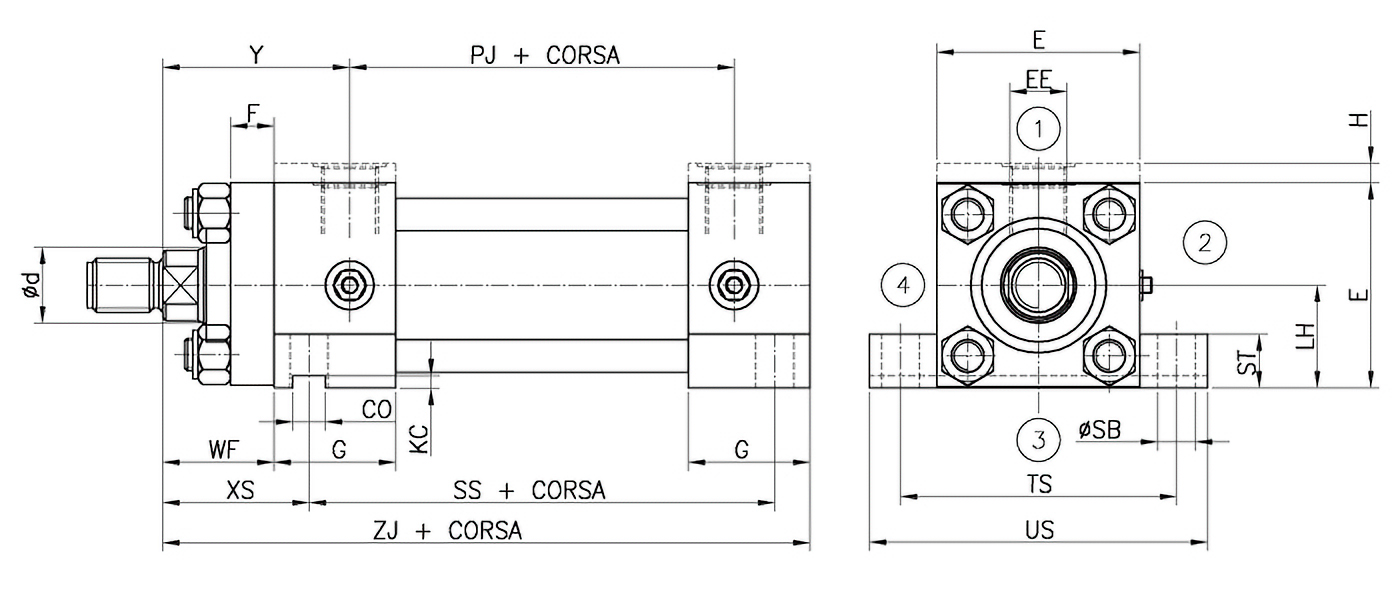

CD - DK series E mounting ISO MS2
| Bore | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|
| d (Ø rod) | 12 | 14 | 18 | 22 | 28 | 36 | 45 | 56 | 70 | 90 |
| d (Ø rod) | - | 18 | 22 | 28 | 36 | 45 | 56 | 70 | 90 | 110 |
| d (Ø rod) | 18 | 22 | 28 | 36 | 45 | 56 | 70 | 90 | 110 | 140 |
| CO (H8) | - | - | 12 | 12 | 16 | 16 | 16 | 20 | 30 | 40 |
| E | 40 | 45 | 60 | 75 | 90 | 115 | 130 | 165 | 200 | 245 |
| EE | G1/4 | G1/4 | G3/8 | G1/2 | G1/2 | G3/4 | G3/4 | G1 | G1 | G1 1/4 |
| F | 10 | 10 | 10 | 16 | 16 | 20 | 22 | 22 | 25 | 25 |
| G | 32 | 35.5 | 46 | 45 | 45 | 52 | 55 | 65 | 70 | 92 |
| GA | - | - | - | - | - | - | - | 87 | 95 | 117 |
| H | 5 | 5 | - | - | - | - | - | - | - | - |
| JA | 32 | 35.5 | 46 | 45 | 45 | 52 | 55 | 65 | 70 | 92 |
| KC | - | - | 4 | 4.5 | 4.5 | 5 | 6 | 6 | 8 | 8 |
| LH h10 | 19 | 22 | 31 | 37 | 44 | 57 | 63 | 82 | 101 | 122 |
| PJ + | 49 | 47 | 58 | 61 | 64 | 77 | 78 | 117 | 130 | 165 |
| SB | 6.6 | 9 | 11 | 14 | 18 | 18 | 26 | 26 | 33 | 39 |
| SS + | 73 | 73 | 98 | 92 | 86 | 105 | 102 | 131 | 130 | 172 |
| ST | 8.5 | 12.5 | 12.5 | 19 | 26 | 26 | 32 | 32 | 38 | 44 |
| TS | 54 | 63 | 83 | 102 | 14 | 149 | 172 | 210 | 260 | 311 |
| US | 72 | 84 | 103 | 127 | 161 | 186 | 216 | 254 | 318 | 381 |
| WF | 25 | 35 | 35 | 41 | 48 | 51 | 57 | 57 | 57 | 57 |
| XS | 33 | 45 | 45 | 54 | 65 | 68 | 79 | 79 | 86 | 92 |
| Y | 45 | 58 | 65 | 69 | 76 | 82 | 91 | 86 | 86 | 98 |
| ZJ + | 114 | 128 | 153 | 159 | 168 | 190 | 203 | 232 | 245 | 299 |
