Tie-rod hydraulic cylinders
D mounting ISO MP5
Categories
Cylinders
- CD series: non-magnetic tie-rod hydraulic cylinder from Ø25 to Ø100;
- MD series: magnetic tie-rod hydraulic cylinder from Ø25 to Ø100;
- DK series: large size tie-rod hydraulic cylinder from Ø125 to Ø200;
- Rod end: STANDARD male thread, SF female thread, ST floating joint end;
- Cylinder support: CTS DIN 24556, PTS, PP plate.

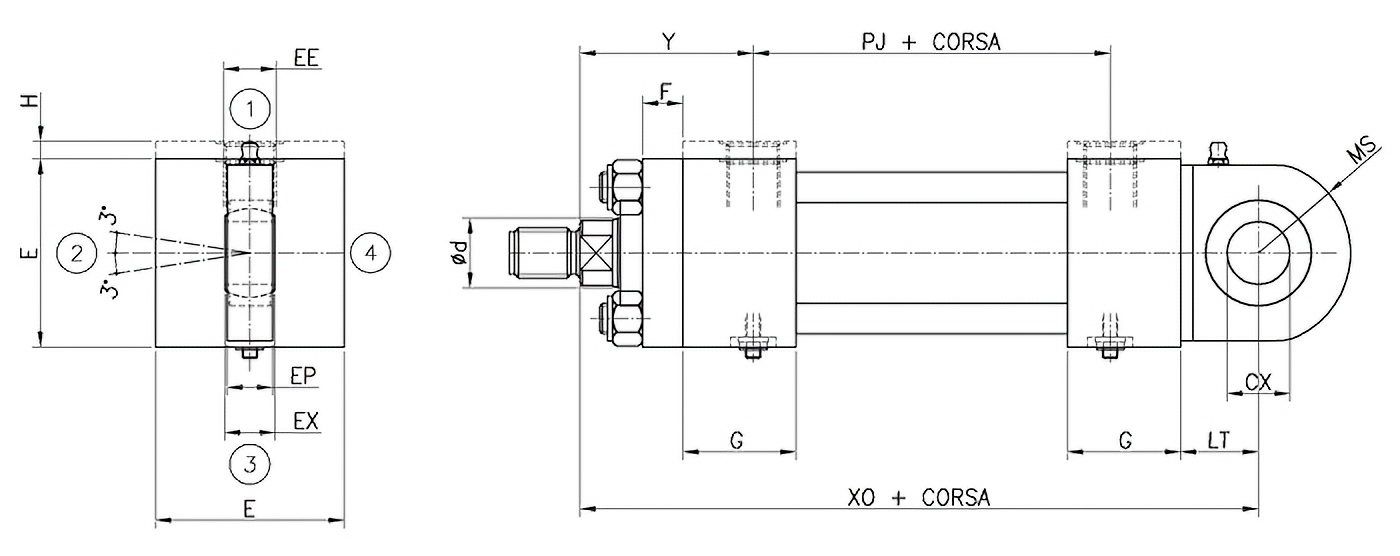

CD - DK series D mounting ISO MP5
| Bore | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|
| d (Ø rod) | 12 | 14 | 18 | 22 | 28 | 36 | 45 | 56 | 70 | 90 |
| d (Ø rod) | - | 18 | 22 | 28 | 36 | 45 | 56 | 70 | 90 | 110 |
| d (Ø rod) | 18 | 22 | 28 | 36 | 45 | 56 | 70 | 90 | 110 | 140 |
| CX | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 |
| E | 40 | 45 | 60 | 75 | 90 | 115 | 130 | 165 | 200 | 245 |
| EE | G1/4 | G1/4 | G3/8 | G1/2 | G1/2 | G3/4 | G3/4 | G1 | G1 | G1 1/4 |
| EP | 9 | 12 | 14 | 18 | 20 | 24 | 30 | 38 | 47 | 58 |
| EX | 10 | 14 | 16 | 20 | 22 | 28 | 35 | 44 | 55 | 70 |
| F | 10 | 10 | 10 | 16 | 16 | 20 | 22 | 22 | 25 | 25 |
| G | 32 | 35.5 | 46 | 45 | 45 | 52 | 55 | 65 | 70 | 92 |
| GA | - | - | - | - | - | - | - | 87 | 95 | 117 |
| H | 5 | 5 | - | - | - | - | - | - | - | - |
| LT | 16 | 20 | 25 | 31 | 38 | 48 | 58 | 72 | 92 | 116 |
| MS | 20 | 25 | 30 | 35 | 40 | 55 | 65 | 90 | 100 | 135 |
| PJ + | 49 | 47 | 58 | 61 | 64 | 77 | 78 | 117 | 130 | 165 |
| XO | 130 | 148 | 178 | 190 | 206 | 238 | 261 | 304 | 337 | 415 |
| Y | 45 | 58 | 65 | 69 | 76 | 82 | 91 | 86 | 86 | 98 |
