Short stroke compact hydraulic cylinders

Valves

Measure the flow of the operating fluid

The valves for the compact hydraulic cylinders must be applied in order to control the amount of oil that is released during the various working phases of the machine.

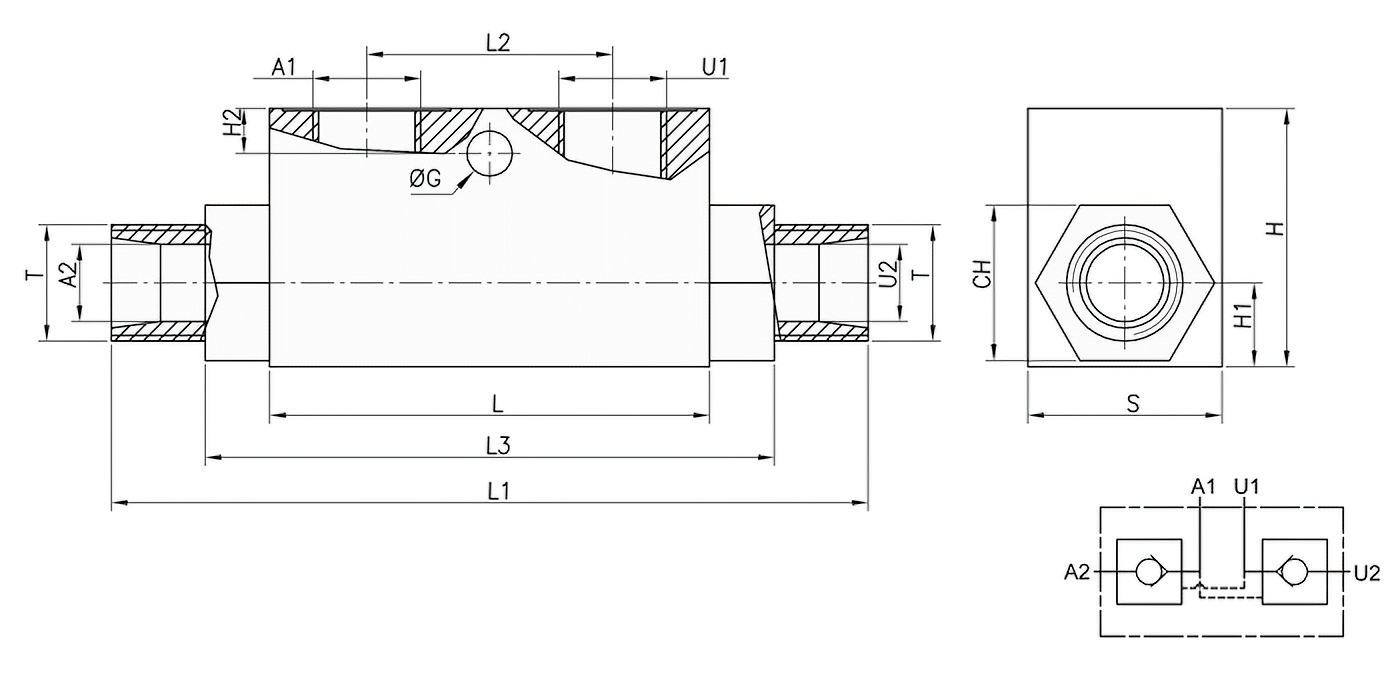

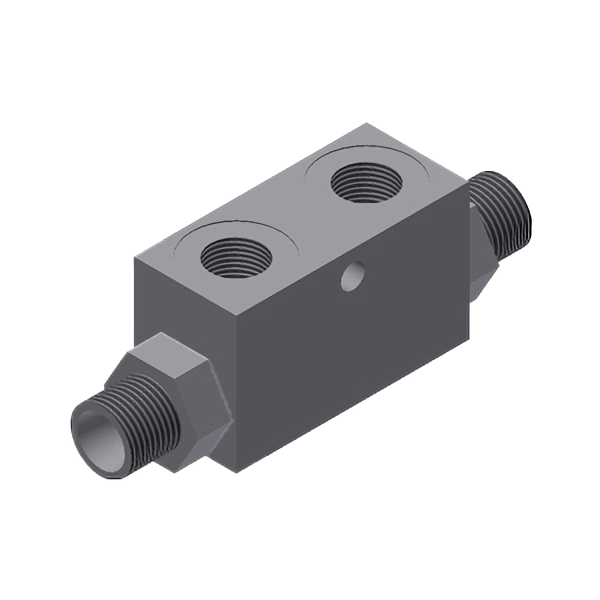

Valve for compact hydraulic cylinders VRDE-AZ FF

Type A1-U1 BSP A2 - U2 T Q MAX L/min P MAX bar PILOT RATIO L MAX L1 L2 L3 Ø G H2 CH H1 H S Kg
VRDE-AZ 010 FF 1/4" Ø12 M18x1,5 30 350 1:4,5 68 138 38 86 7 7 24 13 40 30 0.67
VRDE-AZ 015 FF 3/8" Ø12 M18x1,5 30 350 1:4,5 68 138 38 86 7 7 24 13 40 30 0.66
VRDE-AZ 020 FF 3/8" Ø15 M22x1,5 50 300 1:4 80 166 40 108 8.5 15 27 16 50 30 0.97
VRDE-AZ 025 FF 1/2" Ø15 M22x1,5 50 300 1:4 80 166 40 108 8.5 15 27 16 50 30 0.91
VRDE-AZ 030 FF 1/2" Ø18 M26x1,5 80 300 1:4 90 180 40 133 8.5 15 30 20 60 40 1.67

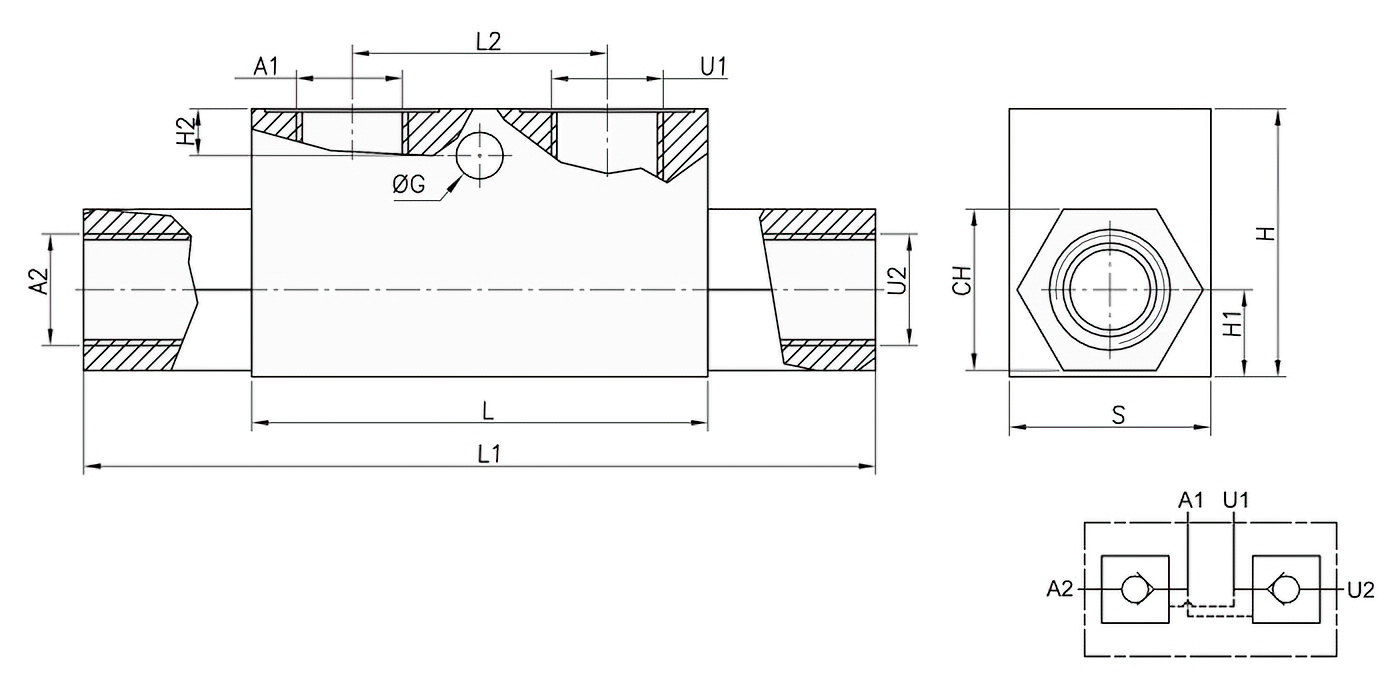

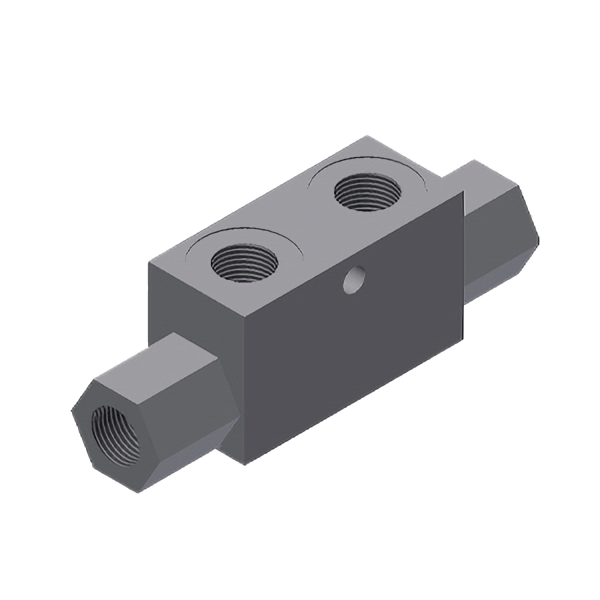

Valve for compact hydraulic cylinders VRDE-F FF

Type A1-U1 BSP A1-U2 BSP Q MAX L/min P MAX bar PILOT RATIO L MAX L1 L2 Ø G H2 CH H1 H S Kg
VRDE-F 005 FF 1/8" 1/8" 20 350 1:4 53 86 20 - - 17 11 30 20 0.3
VRDE-F 010 FF 1/4" 1/4" 30 350 1:4,5 68 118 38 7 7 24 13 40 30 0.69
VRDE-F 015 FF 3/8" 3/8" 30 350 1:4,5 68 118 38 7 7 24 13 40 30 0.64
VRDE-F 020 FF 3/8" 3/8" 30 300 1:4 80 144 40 8.5 15 27 16 50 30 0.98
VRDE-F 025 FF 1/2" 1/2" 50 300 1:4 80 144 40 8.5 15 27 16 50 30 0.91
VRDE-F 030 FF 1/2" 1/2" 80 300 1:4 90 171 40 8.5 15 30 20 60 40 1.72
VRDE-F 040 FF 3/4" 3/4" 120 300 1:4 107 196 60 8.5 16 41 23 70 50 3.11
